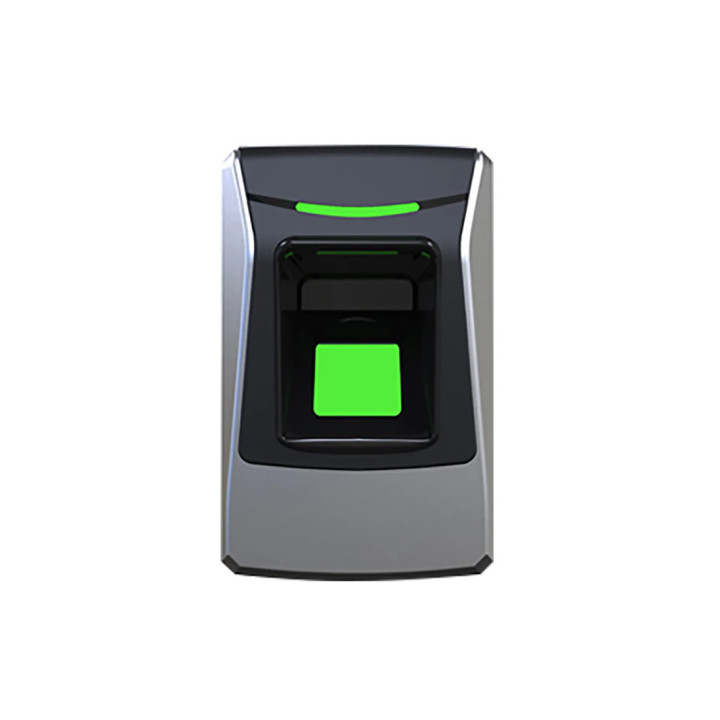

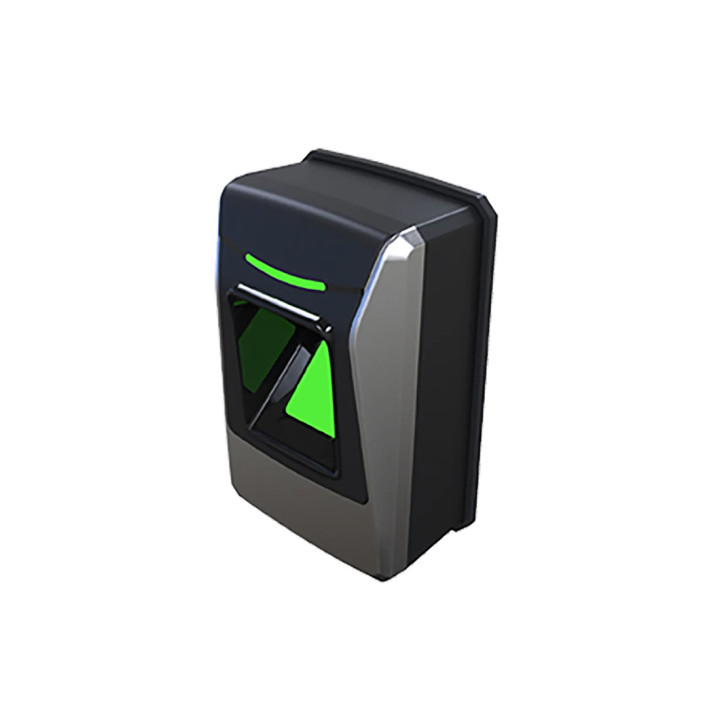

JS-A01 fingerprint card reader is a fingerprint card reader device that integrates fingerprint + card reader.
It is responsible for reading and collecting fingerprint information and sending the access control board.
It has no personnel data processing capability and is only used for card reader and fingerprint collection.
JS-A01 sends fingerprint information to the access control board via RS485.
Please log in to see prices and add this product to your cart.
login Log inProduct Parameters:
Model: JS-A01
Working Temperature: 0-70°C
Working Humidity: 20-80%
False Recognition Rate: < 0.0001%
Rejection Rate: < 0.01%
Working Voltage: DC12V (9-14V)
Verification Mode: 1:N, 1:1
Working Mode: Fingerprint Card Reader
Registration Way: Fingerprint, Password, ID Card, (Mifare Card Optional)
Fingerprint Acquisition Area: 16 x 14 mm
The Acquisition Angle Range: ±45°
Confirm Response Time: < 1s
Communication Port: RS485
Size: 55 X 88 X 38mm
Product Advantage：
1. Living Fingerprints
2. High Speed Algorithms
3. Professional Fingerprint Reader
