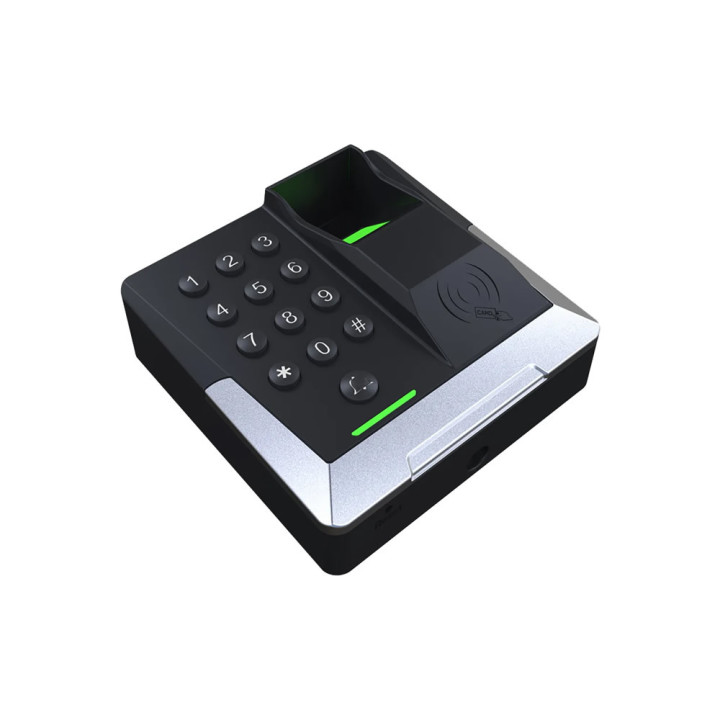

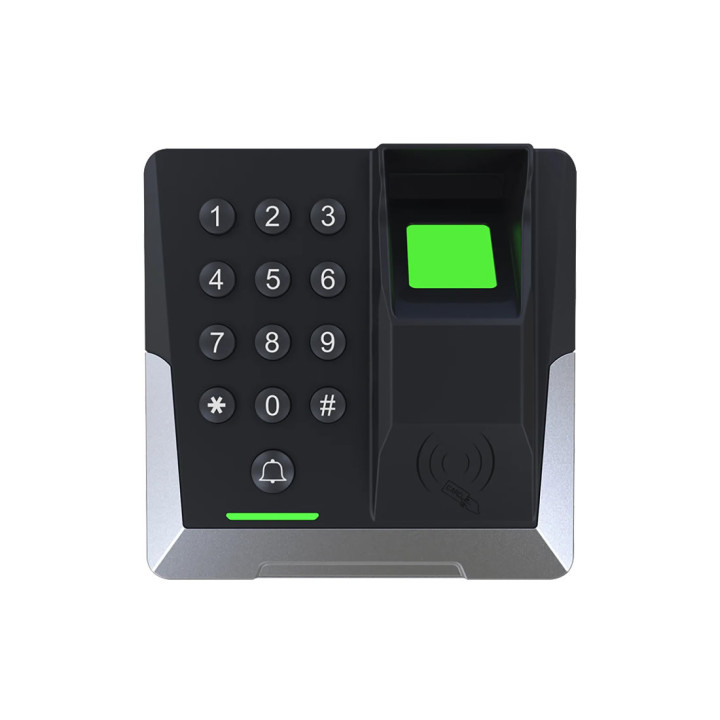

JS-A07 is a fingerprint access controller, which can also be used as a fingerprint access controller for card readers.
Built-in professional processor, independent authorization fingerprint and card issuing without networking, built-in live sensor fingerprint circuit, high-speed identification and rejection of fake fingerprints, fingerprint identification time <1S, support: 1000 fingerprints, 1000 cards, 1000 passwords (can be customized to support ID card or Mifare card), support 1 group of door open relay, 1 group of door sensor, 1 group of alarm output, support U disk backup data.
Please log in to see prices and add this product to your cart.
login Log inProduct Parameters
Model: JS-A07
Working Environment: Temperature: 0-70℃, Humidity: 20-80%
False Acceptance Rate: < 0.0001%
Rejection Rate: < 0.01%
Working Voltage: DC12V (9-14V)
Comparison Method: 1:N, 1:1
Working Mode: Access controller, fingerprint card reader (switch selection)
Registration Method: Fingerprint, password (can be customized to support ID card or Mifare card)
Fingerprint Collection Area: 16×14mm
Collection Angle Range: ±45°
Confirm Response Time: <1 second
Storage Capacity: 1000 fingerprints, 1000 cards, 1000 passwords
Communication Interface: RS485, USB
Controller Interface: Wiegand26/34
Dimensions: 89 X 89 X 33.5mm
