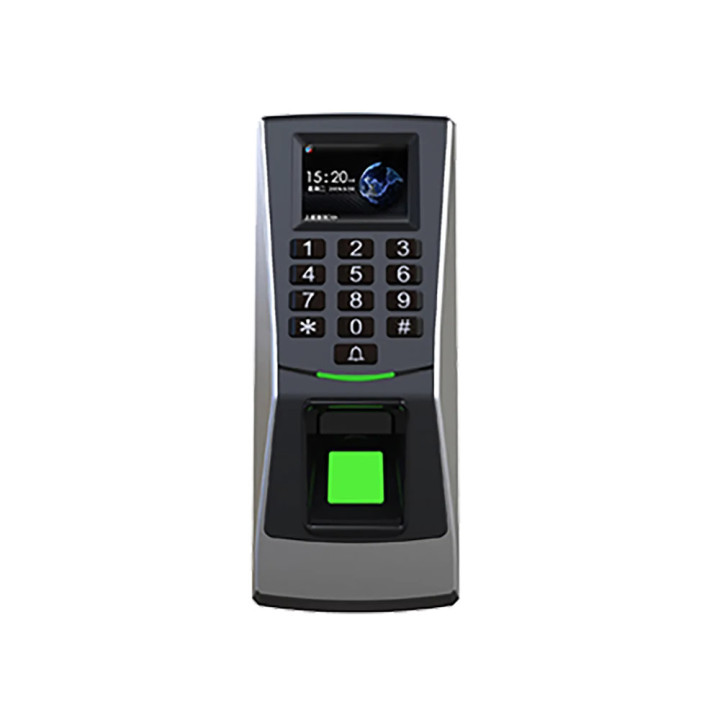

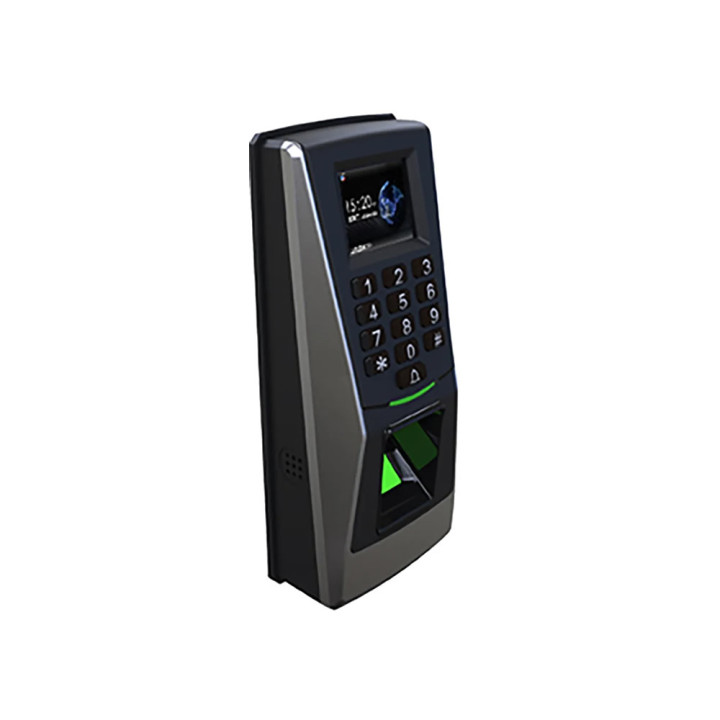

JS-A103 is a fingerprint access controller, which can also be used as a fingerprint access controller for card readers.
Built-in professional processor, independent authorization fingerprint and card issuing without networking, built-in live sensor fingerprint circuit, high-speed identification and rejection of fake fingerprints, fingerprint identification time <1S, support: 1000 fingerprints, 1000 cards, 1000 passwords (can be customized to support ID card or Mifare card), support 1 group of door open relay, 1 group of door sensor, 1 group of alarm output, support U disk backup data.
Please log in to see prices and add this product to your cart.
login Log inProduct Parameters
Model: JS-A103
Working Temperature: 0-70℃
Working Humidity: 20-80%
False Recognition Rate: < 0.0001%
Rejection Rate: < 0.01%
Working Voltage: DC12V (9-14V)
Display: 1.8 inch TFT color screen
Verification Mode: 1:N, 1:1
Registration Way: Fingerprint, Password, ID Card (Mifare Card Optional)
Working Mode: Time Attendance Access Controller
Fingerprint Acquisition Area: 16 x 14 mm
The Acquisition Angle Range: ± 45°
Confirm Response Time: < 1s
Capacity: 1,000 fingerprints, 1,000 cards, 1,000 passwords, 100,000 records
Communication Port: TCP/IP, RS485, USB
Controller Port Protocol: Wiegand26
Size: 66 X 160.5 X 39.5mm
