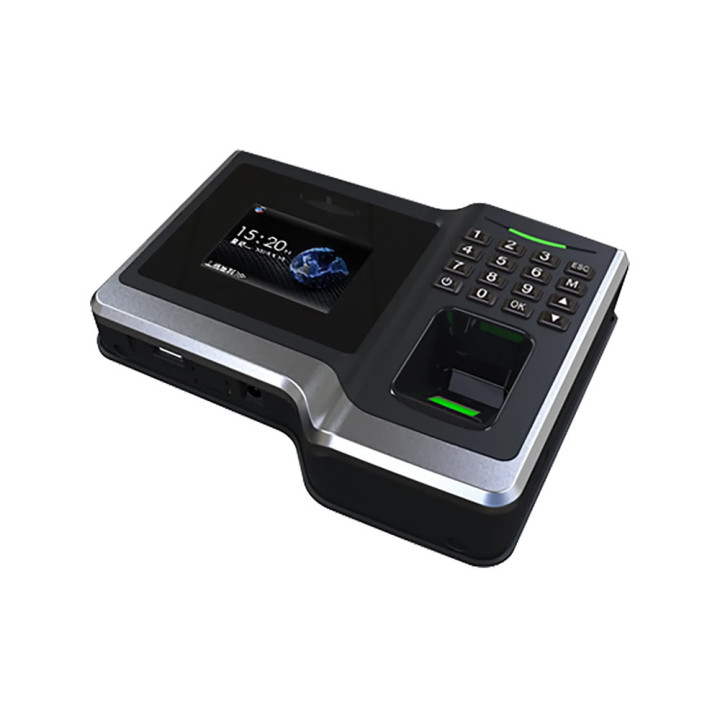

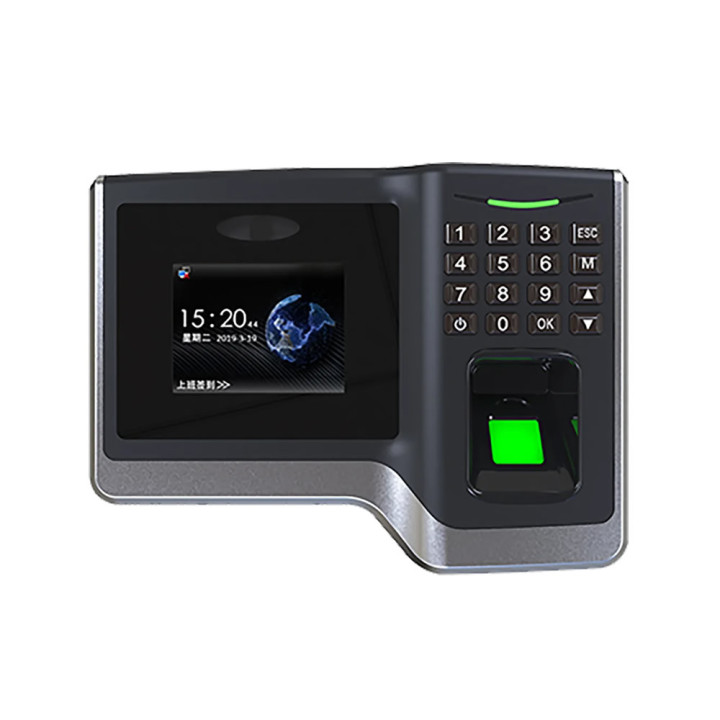

JS-A105 is a fingerprint time attendance access controller that supports networked access control and attendance.
It adopts multi-core ARM processor, integrates massive memory, built-in live fingerprint recognition circuit, supports high-speed recognition and rejection of fake fingerprints.
Fingerprint recognition time <1S, adopts 2.8-inch TFT color screen, support 5000 fingerprints, 5000 cards, 5000 passwords, 200,000 records, support ID card (optional support Mifare card), TCP/IP networking, RS485 networking, support 1 group of door opening relay, 1 group of door sensor, 1 group of alarm output, support U disk backup data, support cloud platform.
Please log in to see prices and add this product to your cart.
login Log inProduct Parameters
Model: JS-A105
False Recognition Rate: < 0.0001%
Rejection Rate: < 0.01%
Working Voltage: DC12V (9-14V)
Screen: 2.8 inch TFT color screen
Verification Mode: 1:N, 1:1
Registration Way: Fingerprint, Password, ID card (Mifare card optional)
Working Mode: Time attendance access controller
Fingerprint Acquisition Area: 16 x 14 mm
The Acquisition Angle Range: ± 45°
Speed: < 1S
Capacity: 5,000 fingerprints, 5,000 cards, 5,000 passwords, 200,000 records (30,000 fingerprint versions can be customized)
Communication Port: TCP/IP, RS485, USB
Controller Port Protocol: Wiegand26
Size: 140.7 X 186 X 40.2mm
Product Parameters
1. Living Fingerprints
2. High Speed Algorithms
3. Maximum 300 million fingerprint capacity
4. Support TCP/IP or WIFI communication
