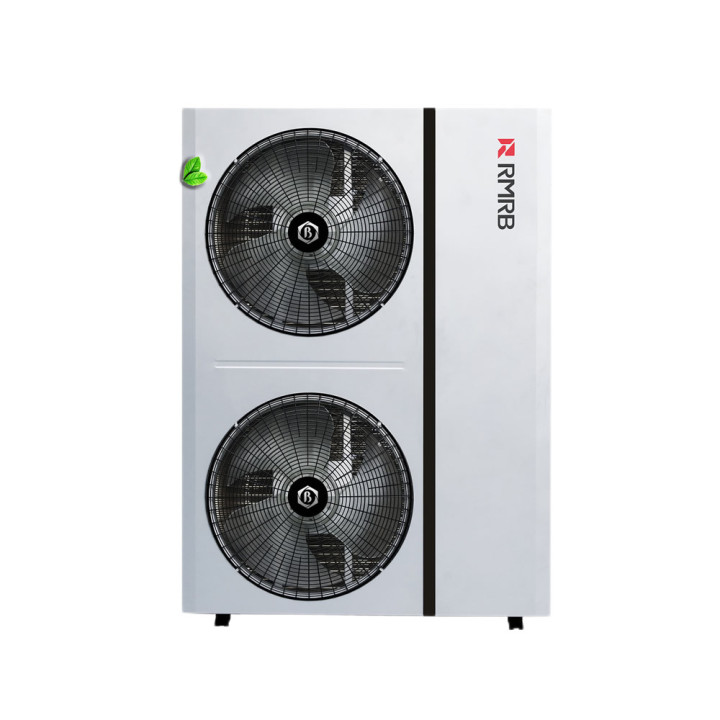

The DC Inverter Heat Pump - Monoblock RMAW-03ZR1-V is a high-efficiency all-in-one heating, cooling, and domestic hot water solution designed for residential applications.
With a versatile heating capacity of 2.8-10.2 kW and cooling capacity of 2.5-7.5 kW, it ensures stable performance throughout the year, even in extreme climates ranging from -25°C to 43°C.
The unit uses an advanced Mitsubishi double-rotor inverter compressor (optional EVI model available), delivering strong performance with low noise levels of ≤50 dB.
This monoblock system supports multiple operating modes - Heating, Cooling, DHW, Heating+DHW, Cooling+DHW - making it suitable for homes of 60-100 m².
Please log in to see prices and add this product to your cart.
login Log inIt features a SWEP plate heat exchanger (optional), a built-in Wilo RS28/8 circulation pump, a 3 kW auxiliary heater, and integrated Wi-Fi control for remote operation.
The unit achieves outstanding energy efficiency ratings of erP A+++ (35°C) and A++ (55°C), and is available with R410A or R32 refrigerant.
With durable IPX4 protection, reliable microprocessor control, and CE certification, the RMAW-03ZR1-V offers a robust and efficient solution for modern home heating, cooling, and hot water needs.
|
DC Inverter Heat Pump
|
Monoblock
|
RMAW-03ZR1-V |
|
|
Rated heating capacity |
KW |
2.8~10.2 |
|
|
Rate hot water capacity |
KW |
2.5~9.5 |
|
|
Rate cooling capacity |
KW |
2.5~7.5 |
|
|
Heating power consumption |
KW |
1~3 |
|
|
Hot water power consumption |
KW |
1~3 |
|
|
Cooling power consumption |
KW |
1~3 |
|
|
Voltage |
V/Hz |
220-240V~ |
|
|
Rated Current |
A |
10.5 |
|
|
Rated heating water temperature |
℃ |
Hot water: 60℃ |
|
|
Rated water flow |
m³/h |
1.7 |
|
|
Rated of waterproof |
/ |
IPX4 |
|
|
Control mode |
/ |
Heating |
|
|
Refrigeration and volume |
/ |
R410A/R32 (Selectable) |
|
|
Compressor |
Form |
/ |
Double-rotor type |
|
Quantity |
/ |
1 |
|
|
Brand |
/ |
Mitsubishi/ EVI Mitsubishi Inverter (Selectable) |
|
|
Outdoor unit |
Net |
mm |
995*470*1000 |
|
Weight |
Kg |
100 |
|
|
Nosie level |
dB |
≤50 |
|
|
Fan |
Form |
/ |
Full DC fan motor |
|
Circulation |
Built in |
/ |
Wilo RS28/8 |
|
Heat exchanger |
/ |
SWEP Plate Heat Exchanger (Selectable) |
|
|
Operation ambient temperature |
℃ |
（-25℃~43℃） |
|
|
Expansion tank |
L |
2 |
|
|
Inlet pipe diameter |
mm |
DN25 |
|
|
Outlet pipe diameter |
mm |
DN25 |
|
|
Monoblock Packing size |
mm |
1060*510*1135 |
|
|
Split unit |
Outdoor Packing |
mm |
1120*520*1122 |
|
Indoor Packing |
mm |
650*382*828 |
|
|
20 feet container loading |
pcs |
42 |
|
|
40 feet container loading |
pcs |
92 |
|
|
Auxiliary Element built-in |
KW |
3 |
|
|
WI-FI function |
/ |
YES |
|
|
CE certificate, Energy Efficiency |
/ |
YES |
|
|
High efficiency |
/ |
erP A+++(35℃),A++(55℃) |
|
|
RMRB Integrated (split) heat pump Suitable for house heating, refrigeration and domestic hot |
㎡ |
60~100 |
|
