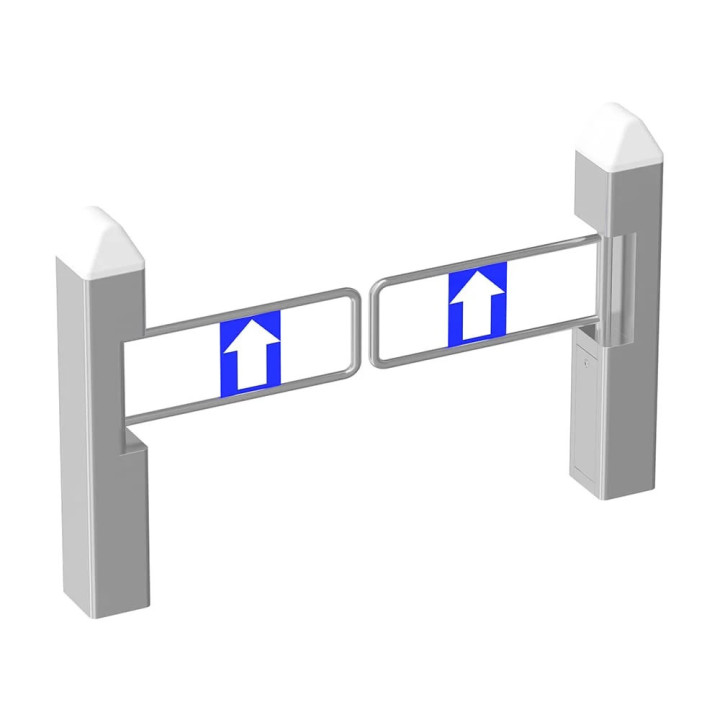

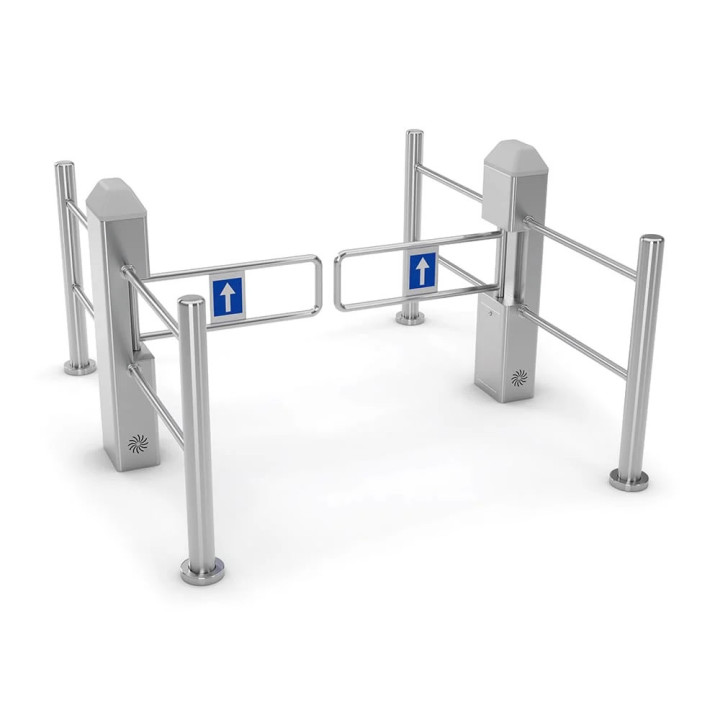

Luxury Swing Gate JS-YZBZ01

Name: Luxury Swing Gate JS-YZBZ01
Brand: Trade-Vest.shop
SKU: JS-YZBZ01

Chassis Size: 260*180*1050mm (L*W*H)

Swing barrier gate is mainly used for the management of the entrance and exit of the passage.

It has the characteristics of fast opening, safety and convenience, etc.

It is the ideal management and guidance equipment for pedestrians with high-frequency entrance and exit.

Widely used in airports, stations, gyms, terminals, attractions, parks, shopping malls, office buildings, pedestrian walkways and other places.

Business

High-speed pass-through for employees and visitors, unauthorized access prevention, and other commercial solutions.

Government

The entrances to government institutions are equipped with blocking devices that allow incoming visitors to pass only when they present their cards.

Campus

Access to the University’s territory is provided by means of the campus card. In order to pass through the turnstile, it is necessary to present the card to the reader.

Subway

Crowd control facilities for subway entrances and exits, such as card payment, coin, QR code and face payment, etc. These control crowd ticketing fees.

Crowd control

For use with crowd size limits and entrance time limits, etc.

Customized

We can provide customization services such as color, size, function and appearance.

Power Supply	AC 220V/110V, 50/60Hz
Operating Temperature	-28 °C- 80 °C
Operating Humidity	5%-85%
Working Environment	Indoor / Outdoor both, IP54 Standard
Rated Power	60W
Flow Rate	25- 48 passage/minute
Casework Material	SUS304 (SUS 316 for option)
Mechanism	Semi automatic electromagnetic mechanism with hydraulic buffer function ( full automatic brushless motor for option)
Control System	Dry contact, RS232 , RS485 can be customize
Emergency Alarm function	Yes
Dimension	2601801050MM(LHW*)
Net Weight	45kgs
Material Thickness	1.5mm
MCBF	Electromagnetic mechanism 5 million cycles , brushless motor 8 million cycles
Warranty	2 years
