Chassis Size: 1200*300*980MM(L*W*H)

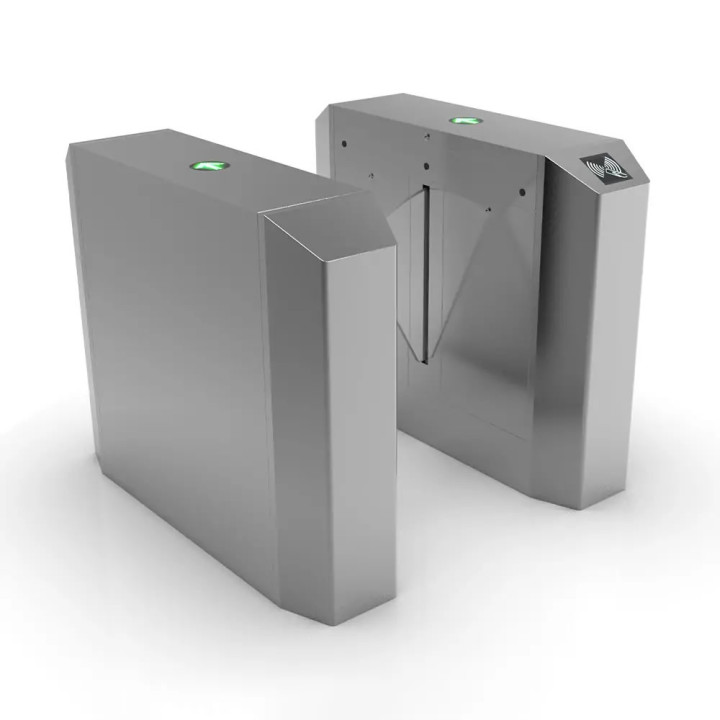

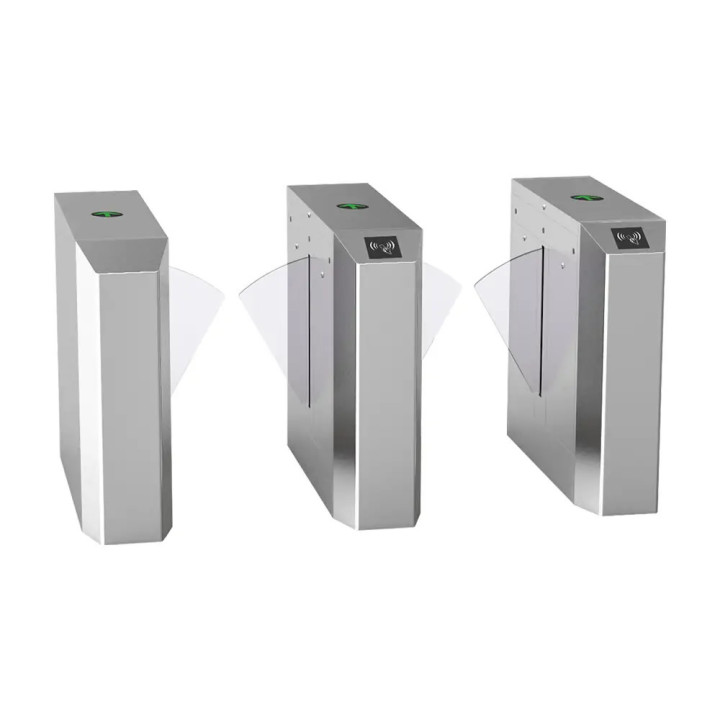

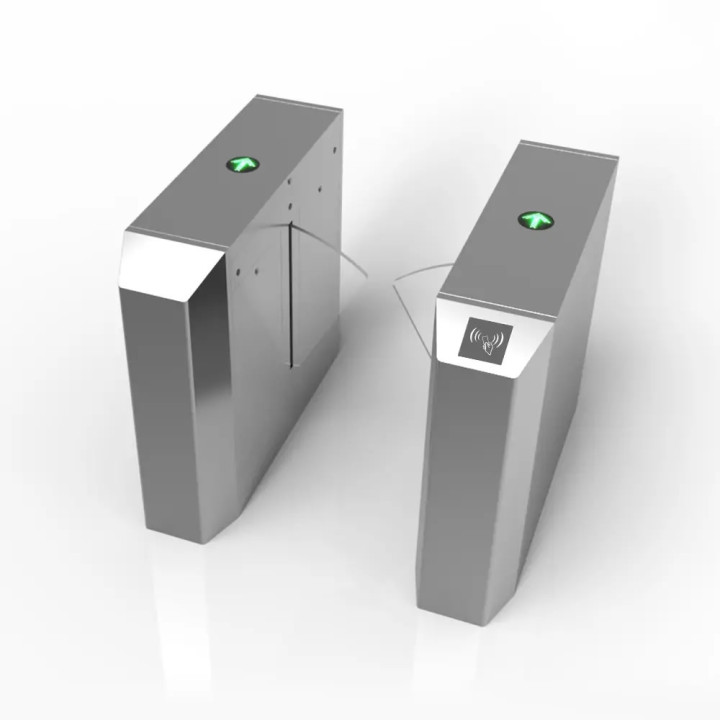

Flap turnstile gate is a high-tech product for intelligent management of pedestrian access.
It is an upgraded product of tripod turnstile and swing turnstile.
The product has exquisite workmanship, fully functional, and classic design.
It is mainly used in high-end places such as high-grade residential areas, intelligent buildings, hotels, subways, docks, clubs, gyms and so on.
Full body made by stainless steel 304, suitable for indoor and outdoor use, water proof and weather proof.
Please log in to see prices and add this product to your cart.
login Log inBusiness
High-speed pass-through for employees and visitors, unauthorized access prevention, and other commercial solutions.
Government
The entrances to government institutions are equipped with blocking devices that allow incoming visitors to pass only when they present their cards.
Campus
Access to the University’s territory is provided by means of the campus card. In order to pass through the turnstile, it is necessary to present the card to the reader.
Subway
Crowd control facilities for subway entrances and exits, such as card payment, coin, QR code and face payment, etc. These control crowd ticketing fees.
Crowd control
For use with crowd size limits and entrance time limits, etc.
Customized
We can provide customization services such as color, size, function and appearance.
| Power Supply | AC 220V/110V, 50/60Hz |
| Operating Temperature | -28 °C- 80 °C |
| Operating Humidity | 5%-85% |
| Working Environment | Indoor / Outdoor both, IP54 Standard |
| Rated Power | 60W |
| Flow Rate | 25- 48 passage/minute |
| Casework Material | SUS304 (SUS 316 for option) |
| Mechanism | Semi automatic electromagnetic mechanism with hydraulic buffer function ( full automatic brushless motor for option) |
| Control System | Dry contact, RS232 , RS485 can be customize |
| Emergency Alarm function | Yes |
| Dimension | 1200*300*980MM |
| Net Weight | 45kgs |
| Material Thickness | 1.5mm |
| MCBF | Electromagnetic mechanism 5 million cycles , brushless motor 8 million cycles |
| Warranty | 2 years |
