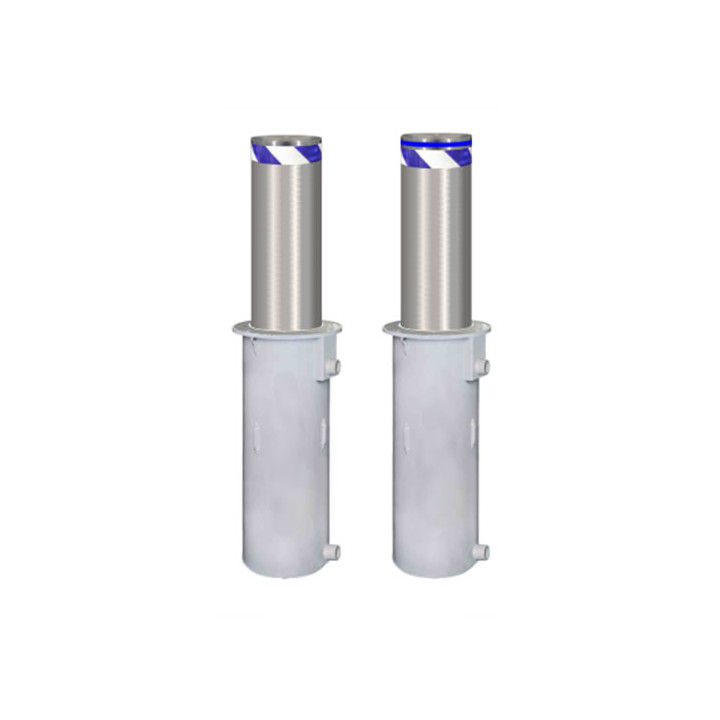

The Riot-proof Lifting Vehicle Barrier (Semi-automatic Lifting Column) features an electric-hydraulic control system and a durable stainless steel composite column with a 600mm lifting height.
Its one-piece cast steel cover is electroplated, painted, and textured for high-end non-slip performance, while the entire barrier is waterproof, dustproof (IP68), and capable of withstanding collisions and the weight of 40-ton container trucks.
With fast operation (raising ≤4s, lowering ≤2s), a built-in drainage system, and an emergency stop and backup power function, this barrier ensures reliable security and uninterrupted functionality in extreme environments from -35°C to 75°C.
Minimum Order Quantity (MoQ) - 50 pieces
Please log in to see prices and add this product to your cart.
login Log in1. System control: electric hydraulic.
2. Stainless steel cylinder diameter: 219±2mm
3. Outer box specifications: embedded height 807±5mm* diameter 335±2mm
4. Lifting height: 600±5mm,Column thickness: 6±1mm
5. Material: 304+201 stainless steel composite pipe, pipe length 660±5m.
6. Cover thickness: 13±1mm, molded from one-piece cast steel, electroplated and painted, with a high-end non-slip texture.
7. Weight: Approximately 54kg.
8. Waterproof and dustproof rating: IP68.
9. Collision resistance: 3 guide posts.
10. Pressure rating: Suitable for 40-ton container trucks.
11. Raising speed: ≤4s, lowering speed: ≤2s.
12. Power supply: 220V.
13. Operating temperature: -35°C to 75°C (suitable), storage environment: -10°C to 65°C, rainproof, moisture-proof, and dustproof.
14. The bottom of the barrier should have a drainage design that allows for effective drainage. The drain pipe opening diameter should be ≥φ50mm, and the wall thickness should be ≥4mm.
15. The barrier should have an emergency stop function when raising or lowering. When the roadblock body encounters a power outage, it is equipped with an emergency power supply for emergency descent.
