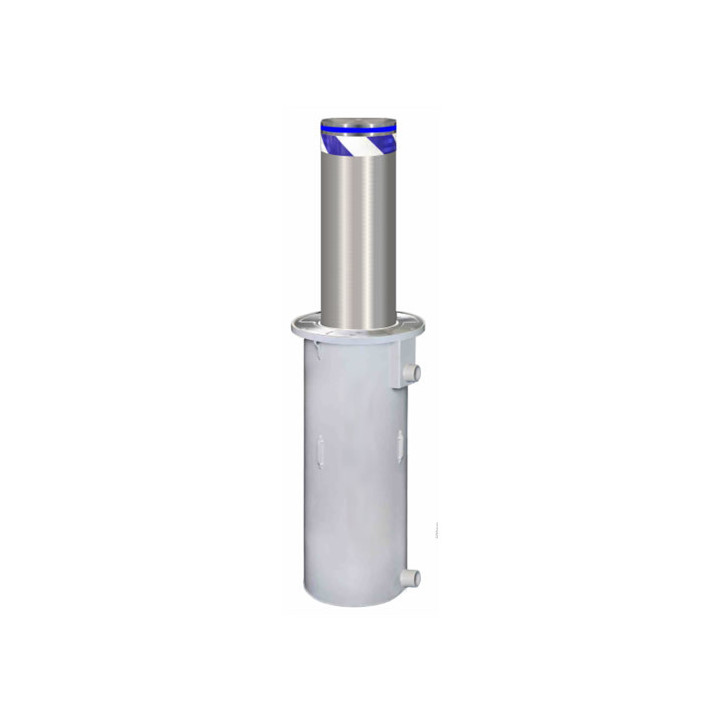

Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction.
It use soil pressure as dynamic to realize the rise/fall of bollard.
As a moving device, it is usually installed at vehicle entrance/exit. It rises to block the vehicle and falls the ground level to authorize free passing.
Minimum Order Quantity (MoQ) - 50 pieces
Please log in to see prices and add this product to your cart.
login Log in1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.
2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.
3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods.
4. Can be manually lowered in the event of a power outage.
5. Linkage interface.
6. Reversible operation according to requirements during ascent and descent.
7. Noise during operation of the device≤60 dB.
8. Waterproof integrated hydraulic drive.
9. Control solenoid valve 24V.
10. Control box display text adjustable (up, down, start, time control adjustment).
11. Display text in English.
12. Water immersion performance:no leakage during 48 hours and normal lifting.
13. Anti-corrosion performance level: 9
| Color | Silver |
| Thickness | 6mm |
| Raising/lowering speed | 3-6s(adjustable) |
| Diameter | 219mm |
| Raised Height | 600-900mm(optional) |
| Material | 304 stainless steel |
| Control Mode | remote control(<50m) |
| System Control | hydraulic and electric control |
| Working temperature | -30℃～+75℃ |
| Embedded cylinder depth | 1100mm |
| Lamp Belt | LED lamp(Acrylic light circle) |
| Power Supply | 220V/380V |
| Thickness | 6mm |
| Weight | 100-155kg |
| Anti-Collision Levels | K6 |
| Service Life | 3 million times |
| Drainage mode | Natural drainage+External drainage system |
