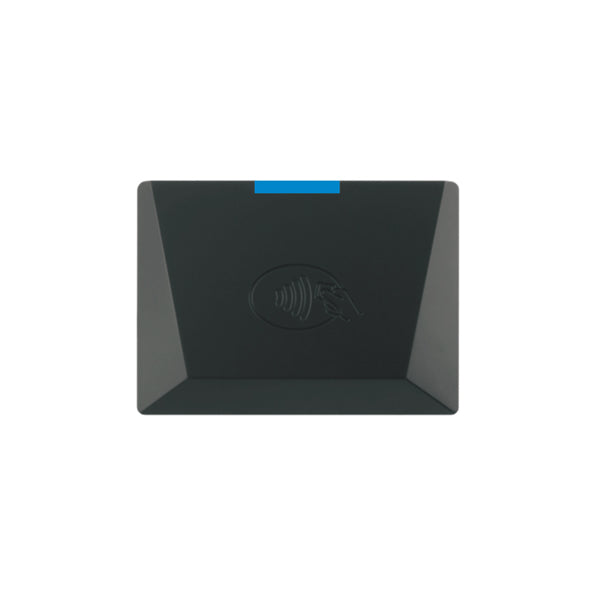

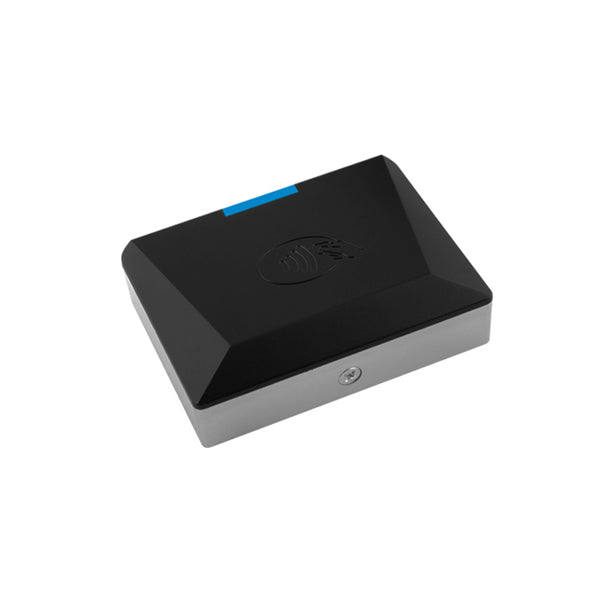

RFID Card Reader FC-182
The price does not include transportation, taxes, customs duties, or freight forwarding services.
Minimum order Quantity: 1 piece
Terms of Payment: Full payment before production
Delivery Time: 15 days
Warranty: 1 year
Manufacturer: Shenzhen Karsun Access Technology Co., Ltd., China
The buyer organizes and pays for the transportation of the goods from the factory to the final destination.
PRODUCT DESCRIPTION
FC-182 RFID card reader has the characteristics of high receiving sensitivity, low working current, single DC power supply, low price and high performance.
FC-182 access control card reader is suitable for various radio frequency identification applications such as access control, time attendance, charging, anti-theft, etc.
FC-182 RFID Card Reader, use the advanced RF technology and embedded mini access controller, combined with efficient decoding algorithm to achieve 64 bits Read-Only EM4100 compatible ID card and 13.56MHz frequency, encrypted algorithm to get the MIFARE format Mifare card data, get the card number by calculate, have high sensitive, small current, power supply, low price, excellent functions. FC-182 RFID Reader is suitable for access control system, time attendance system, charge, burglar etc.
The models of FC-182 RFID card reader are divided into:
FC-182E (ID card)
FC-182M (Ordinary Mifare card)
FC-182H (HID card)
FC-182S (Identification card + Mifare card + CPU card + NFC card + residence permit + NFC mobile phone)
Product parameters:
Working Voltage: DC10.8 - 13.8V > Standard 12V
Antenna: Build in
Working Current: 50-70mA
Communication Distance: 120m
Transfer Way: Realtime
Reading Speed: < 0.2s
Reading Spacing: < 0.5s
Operating Humidity: 10-90%
Speaker: buzzer
LED: Built in three groups
Working Temperature: -0℃ to +65℃
Reading Frequency: 125KHz /13.56MHz
Device Color: Silver + Grey
Size: 72mm long, 56mm wide, 21mm high
Models: FC-182E, FC-182M, FC-182H, FC-182S
Networking: Wiegand 26 bits/Wiegand 34 standard format data output
Shell Material: PVC and Spray-painting
Reading Distance: 0-60mm (ID Card), 0-50mm (Mifare Card)
When the card close the card reader, the reader red light will change into green light, flash 1s then into red light, buzzer sounds once time means sending data, same ID card, if reading interval shorter than 500ms between two times reading, the second times reading is invalid. After reading, if the card still in the RF area it will not do any response. Different card separately into RF area, it will continuously to read card and output data.

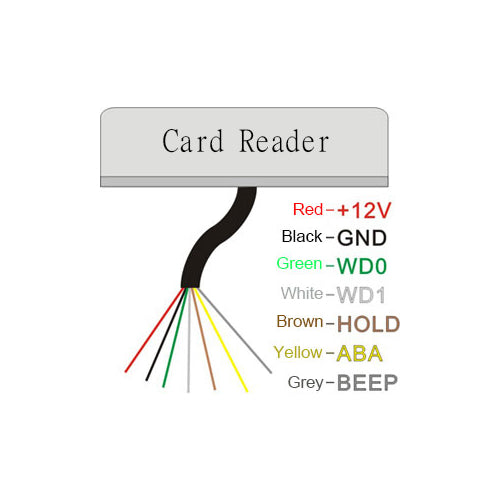

Wiring:
+12V: +DC (9-12DC)
GND: Ground
DO: Data 0
D1: Data 1
LED: Light - emitting diode
BUZ: Buzzer
FOR: WG26/34
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
