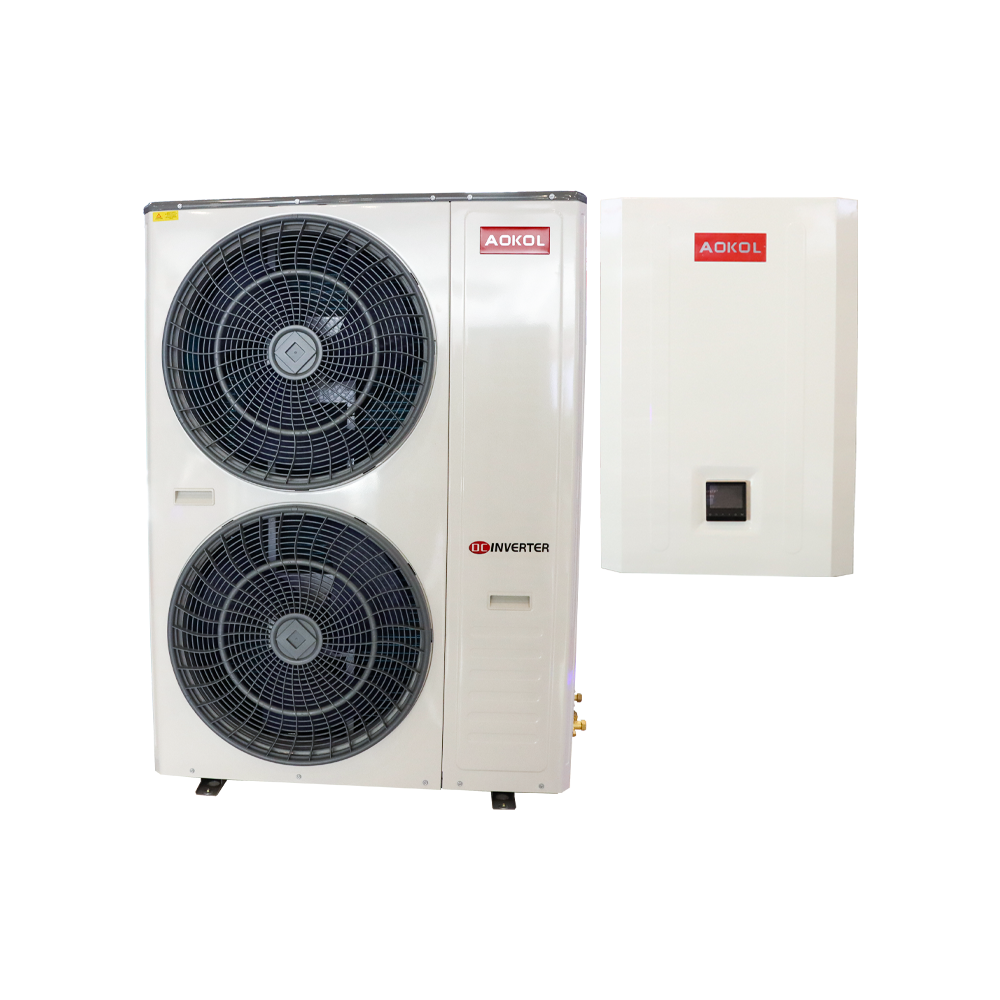

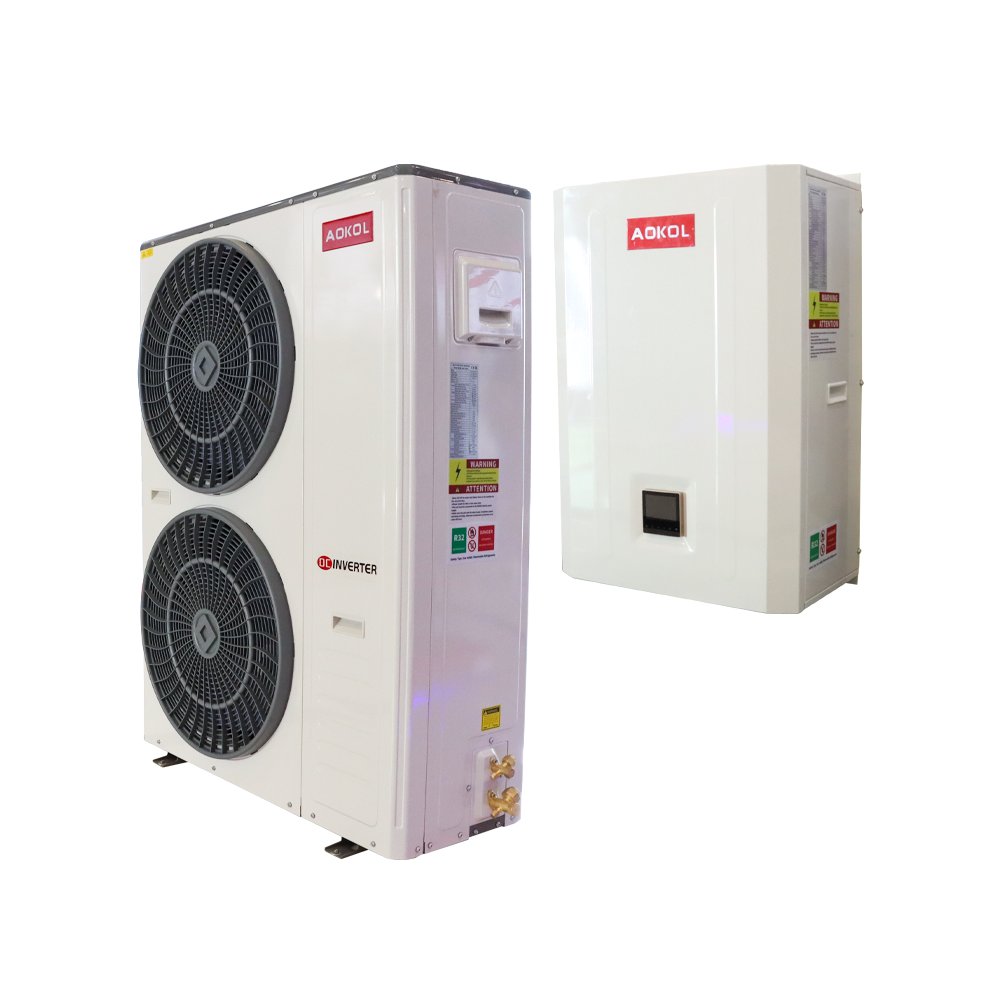

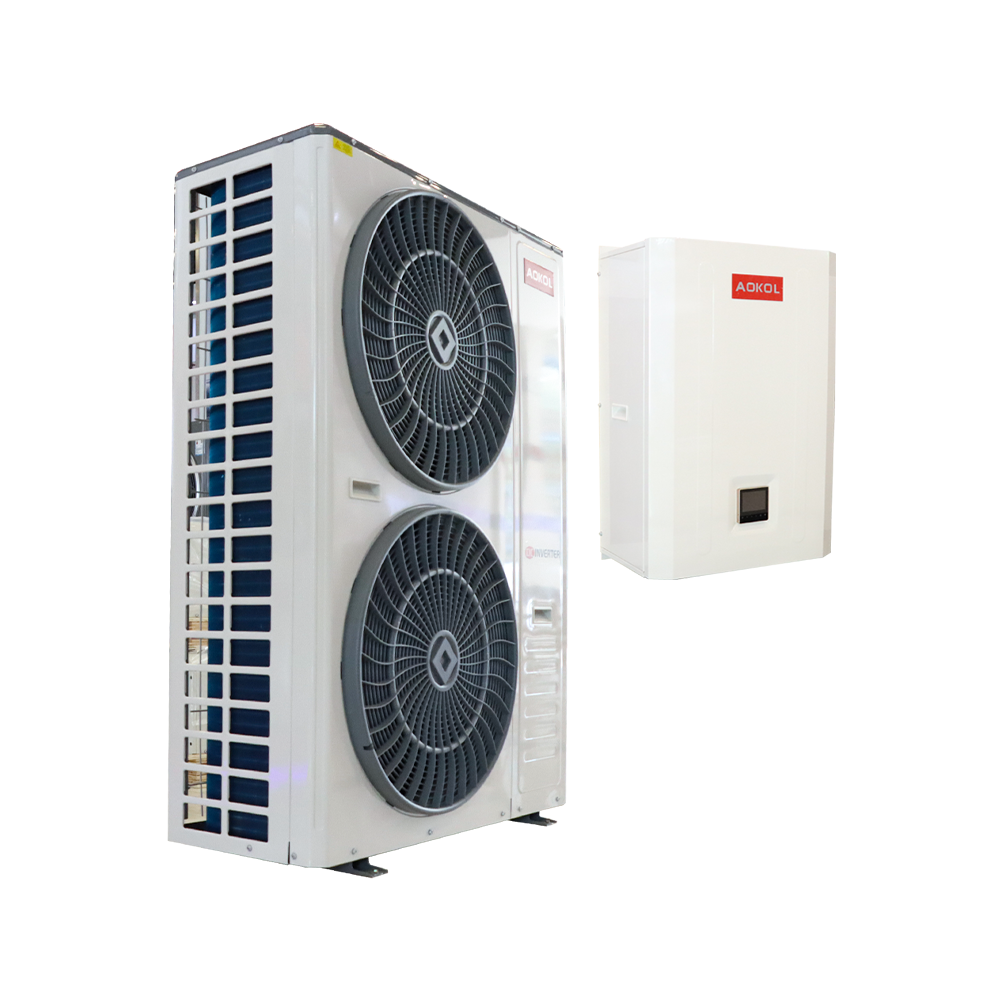

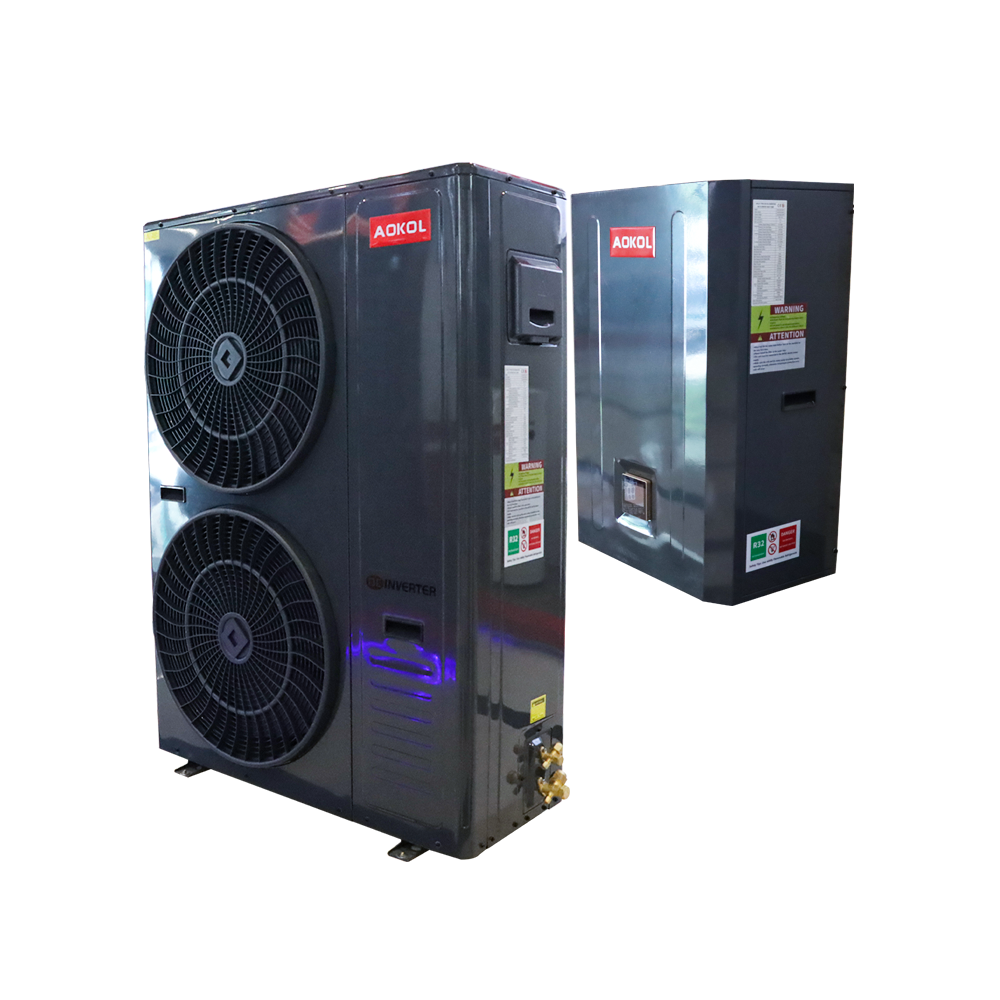

AOKOL R32 Split Heat Pump ASH-65CHW/FR

The price does not include transportation, taxes, customs duties, or freight forwarding services.

Minimum order Quantity: 1 piece

Terms of Payment: Full payment before delivery

Delivery Time: 20 days

Warranty: 5 years

Manufacturer: Ningbo Aokol Heat Pump Technology Co., Ltd., China

The buyer organizes and pays for the transportation of the goods from the factory to the final destination.

PRODUCT DESCRIPTION

The AOKOL ASH-65CHW/FR is a high-efficiency R32 split heat pump designed for versatile residential applications, offering five optional functions: Heating, Domestic Hot Water, Cooling, Heating + Domestic Hot Water, and Cooling + Domestic Hot Water.

This split model features an indoor unit and outdoor unit connected by copper pipes, ensuring simple, flexible, and convenient installation.

The indoor unit can be placed in a kitchen, bathroom, or basement, minimizing energy loss while protecting water pipes from freezing in cold winters and sun exposure in hot summers.

Powered by a 380-415V/50Hz supply, it achieves top ErP ratings of A+++ at 35°C and A++ at 55°C, making it an eco-friendly choice with low CO2 equivalent emissions (1.56 tonnes from 2.3 kg R32 refrigerant).

Key components in the indoor unit include a Shinhoo DC circulation water pump, Honeywell electric valve, ACOL differential pressure water switch, brazed plate heat exchanger, and 3 kW auxiliary heating for reliable performance.

The outdoor unit is equipped with premium parts such as a Panasonic rotary twin-cylinder EVI low-temp DC inverter compressor, DC drive board and controller, Danfoss electric expansion valve, SANHUA four-way valve, Sensata pressure transducer, DC motor, hydrophilic aluminum foil with inner-grooved copper evaporator, refrigerant valve, and de-ice heater.

It operates quietly with indoor noise at 32 dB(A) and outdoor at 58 dB(A), and supports heating/hot water temperatures from 30-60°C across an outdoor temperature range of -30 to 45°C.

Compact dimensions make it space-efficient: indoor unit (550x430x800 mm, 52 kg) and outdoor unit (1000x390x1380 mm, 110 kg).

With a water flowrate of 2.06 m³/h, 1.2/DN32 inch water connection, and 1/2+3/4 inch copper pipe connection, it's built for durability and ease of use.

Ideal for energy-saving climate control, this heat pump delivers exceptional Coefficient of Performance (COP) and Energy Efficiency Ratio (EER) values for year-round comfort.
