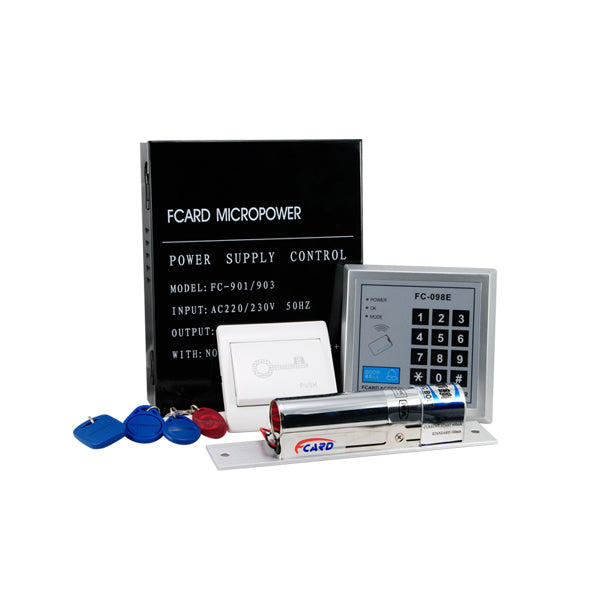

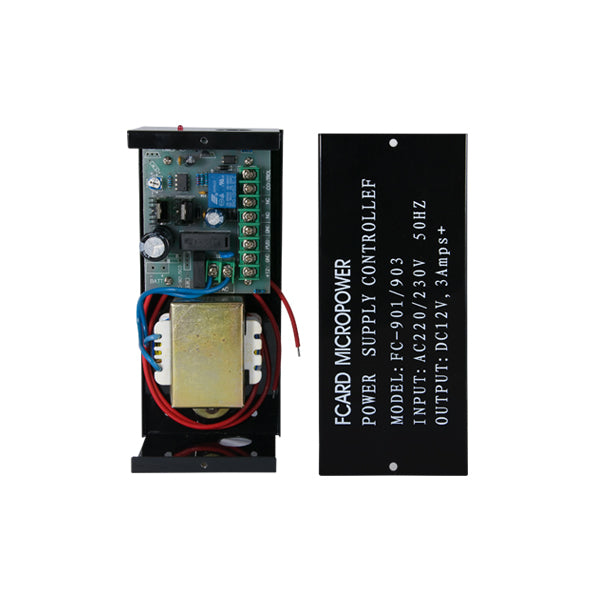

Access Control Power Supply FC-901
The price does not include transportation, taxes, customs duties, or freight forwarding services.
Minimum order Quantity: 1 piece
Terms of Payment: Full payment before production
Delivery Time: 15 days
Warranty: 1 year
Manufacturer: Shenzhen Karsun Access Technology Co., Ltd., China
The buyer organizes and pays for the transportation of the goods from the factory to the final destination.
PRODUCT DESCRIPTION
FC-901 Access control power supply has a delay control circuit. The unlocking time is (0-15) s, and the exit button input can directly activate the electric lock.

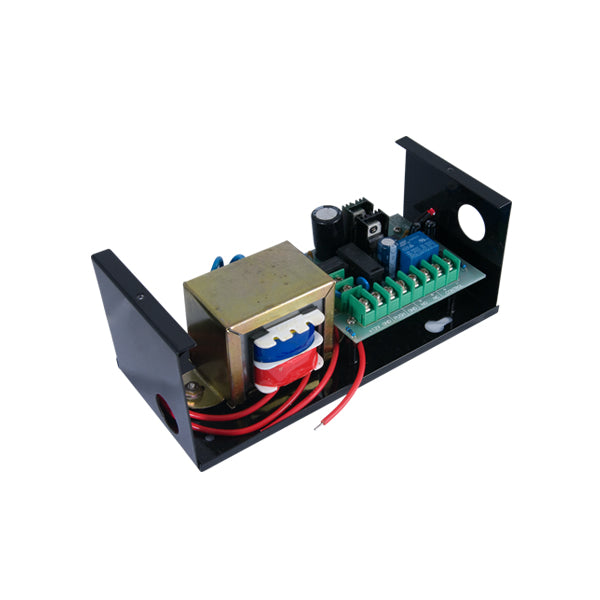

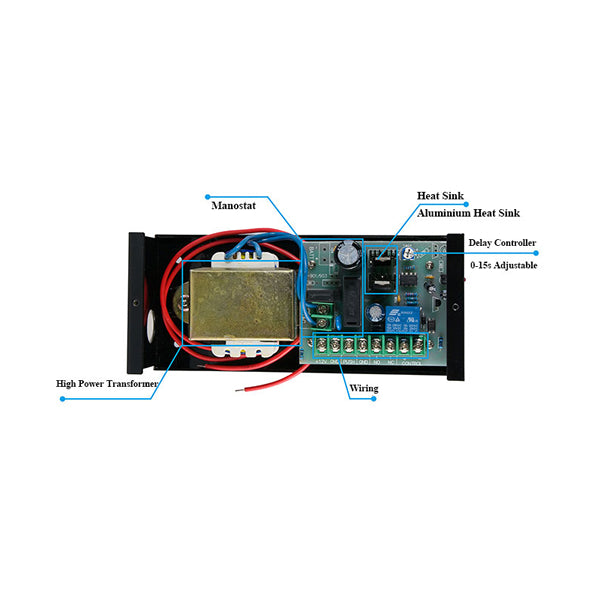

FC-901 access control power supply adopts high-power transformer, support DC12V3A output, use multi-level protection circuit, specialize to setting time delay control output, adjustable 0-15 second.
FC-901 access control power supply adopts high-power transformer, support DC12V3A output, use multi-level protection circuit, specialize to setting time delay control output, adjustable 0-15 second. Access control power supply 12V output adopts dual voltage design, so that the system is more stable. FC-901 latest design, support CONTROL signal input mode, support a variety of front-end equipment, support building intercom host signal input, PUSH unlock signal input.
FC-901 Access control power box suitable for building intercom, various enter/exit access controller and all electric locks, it can reduce the loading of access controller, save engineering wiring and reduce hidden trouble. Have NO/NC Output, can control all kinds electric locks. Time delay control circuit, unlock time is in (0-15)s, exit button input, can enable the electric locks directly.
Product parameters:
Size: 180*78*65mm
AC Input: AC200/230V 50Hz
DC Input: DC12V
Delay: (Support) Adjustable
Functions:
1. Adopt multi pole insurance design.
2. built in dual voltage DC12V output.
3. Support PUSH - drive unlock.
4. Support relay switching control output.
5. Built-in adjustable knob lock delay 0-15 seconds.
6. Photoelectric isolation input unlock, support all kinds of building intercom.
7. support two groups working indicator, working instruction and battery instructions.
Cabling Instructions:
1-2: Regulated output DC12V, 1 positive, 2 negative.
2-3: Open button connection terminal can be connected to switch output(relay output).
3: Low-frequency signal output,connected to access controller signal lines.
4-5: NO -GND, normally open no power output, trigger output DC12V-17V, 4 positive, 5 negative.
5-6: NC -GND, normally closed output DC12V-17V, triggering power outages, 6 are positive, 5 negative.
6-7: The high-frequency signal output, on the positive lock.
7-8: Connect the host building intercom lock signal input interface,7L +,8 of L - + 8,- 9 for the building intercom unlock signal,L +,L - input port, or as high as + 8 radio frequency input,- 9 is low frequency input(this only C plate)
