RFID Card Reader FC-185K
The price does not include transportation, taxes, customs duties, or freight forwarding services.
Minimum order Quantity: 1 piece
Terms of Payment: Full payment before production
Delivery Time: 15 days
Warranty: 1 year
Manufacturer: Shenzhen Karsun Access Technology Co., Ltd., China
The buyer organizes and pays for the transportation of the goods from the factory to the final destination.
PRODUCT DESCRIPTION
The Identification card reader adopts a 125KHZ mullion-mounted induction HID reader, equipped with a tail cable or wiring board (the wiring board is only for "dangerous location" products), and is equipped with Wiegand or "clock and data" interface; package Type access control card reader, suitable for indoor and outdoor use.
FC-185K Identification card reader can choose FC-185EK (ID card) or FC-185MK (common Mifare card), FC-185HK (HID card), FC-185SK Identification card reader can support ( Identification card + Mifare card + CPU card + NFC card + residence permit + NFC mobile phone)
Identification card reader FC-185K, using advanced card reader technology, suitable for card reading of multiple technologies, built-in antenna and three sets of LEDs, communication distance 120 meters, support Wiegand 26bits/Wiegand 34 standard format data output networking the way.
FC-185K functions and parameters
- 125KHZ mullion mounted induction HID card reader
- Equipped with pigtail cable or terminal block (terminal block is only for "dangerous location" type products)
- The Identification card reader is equipped with Wiegand or "clock and data" interface
- Encapsulated card reader, suitable for indoor and outdoor use. "Hazardous location" products have obtained UL 1604, Class I & II, Div. 2 and Class III certifications
- Power requirements: 5-16 VDC
- Current requirements: 20ma average/110ma peak (under 12VDC)
- MiniProx for hazardous locations
- Basic card part number: 5365 (Wiegand), 5368 (clock and data)
- 18' (45cm) pigtail cable
The models of 185K access control card reader are divided into:
FC-185EK (ID card)
FC-185MK (Common Mifare card)
FC-185HK (HID card)
FC-185SK (Identification card + Mifare card + CPU card + NFC card + residence permit + NFC mobile phone)
Identification card reader, suitable for reading and writing Identification cards.
Product parameters:
Working Voltage: DC10.8-13.8V -> standard DC 12V
Built-in Antenna: Yes
Working Current: 50-70mA
Communication Distance: 120 meters
Transmission Method: real time
Card Reading Speed: < 0.2 seconds
Card Reading Interval: < 0.5 seconds
Working Humidity: 10-90%
Built-in Horn: buzzer
Built-in LED: There are three groups of LEDs
Working Temperature: -35℃-75℃
Card Reading Frequency: 125KHz / 13.56MHz
Device Color: silver + gray printing color *

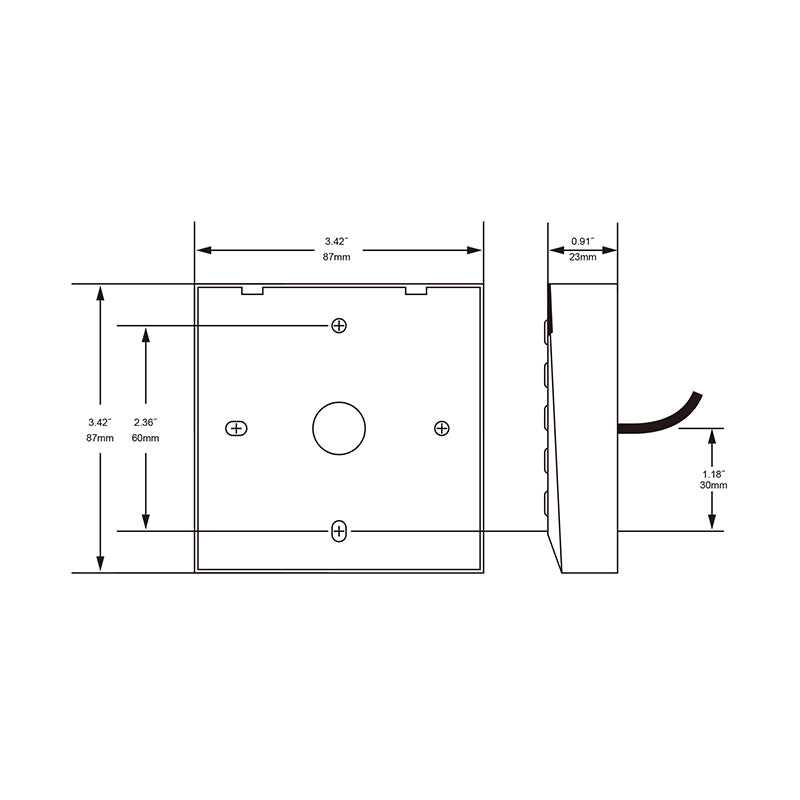

Appearance Size: length 87mm, width 87mm, height 23mm
Model Number: FC-185EK, FC-185MK, FC-185HK, FC-185SK
Networking Mode: Wiegand 26bits/Wiegand 34 standard format data output
Shell Material: PVC and spray paint -> filled with black resin glue (effectively waterproof)
Induction Distance: 0-60mm (ID card), 0-50mm (Mifare card)

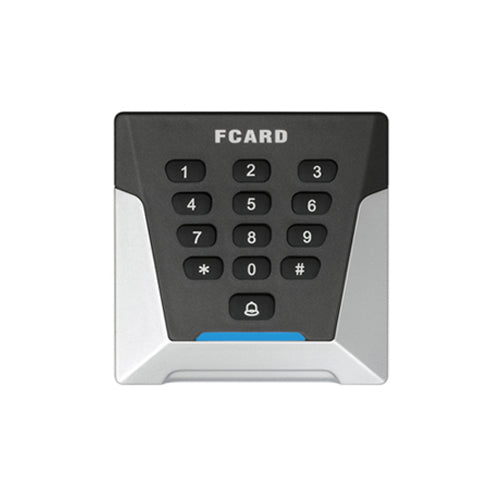

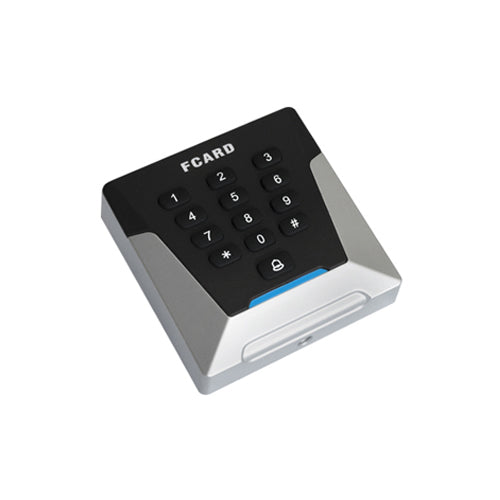

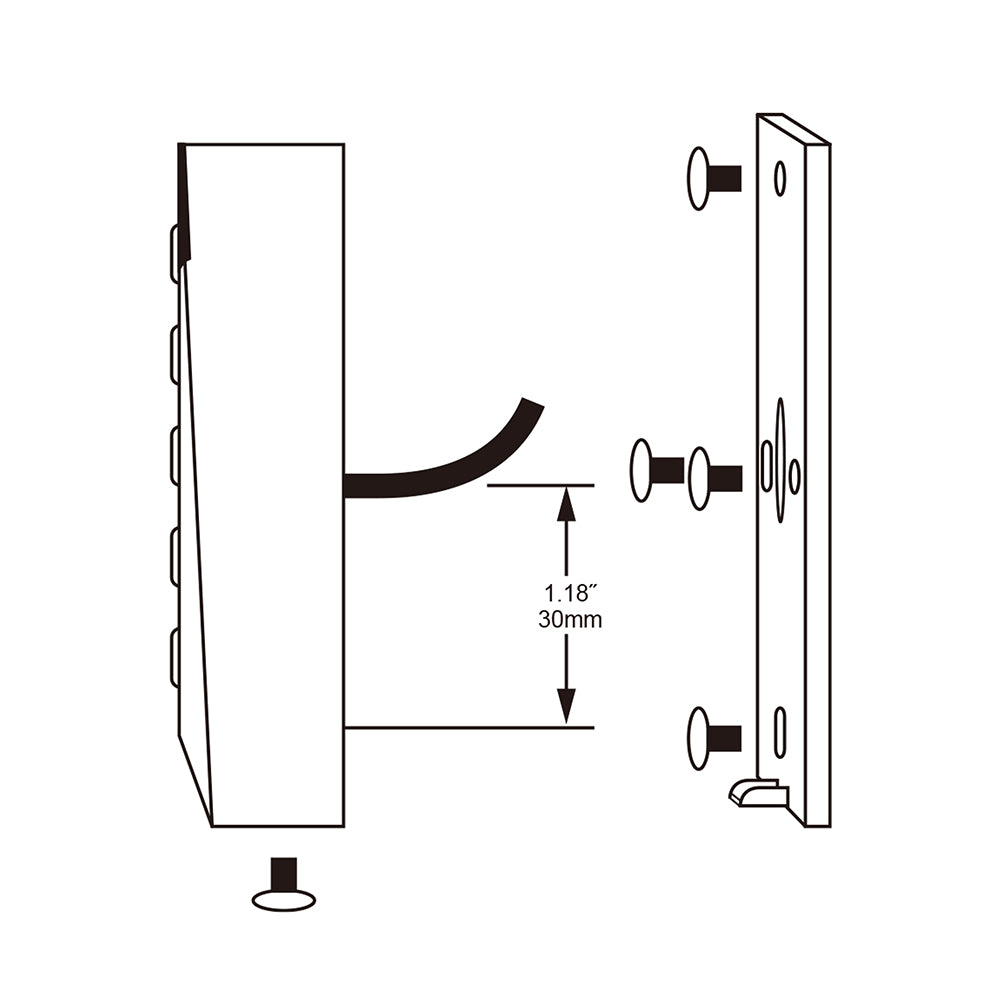

FCARD high-end series of access control card readers can choose to support EM cards, Mifare cards, HID cards, CPU cards, ID cards, 2.4G mobile phone cards, etc. The Identification card reader supports keyboard input and supports WG26/34 format output. 86 format mounting holes. FC-185K ID card reader adopts light touch mechanical buttons, making it suitable for various "rigorous" applications.

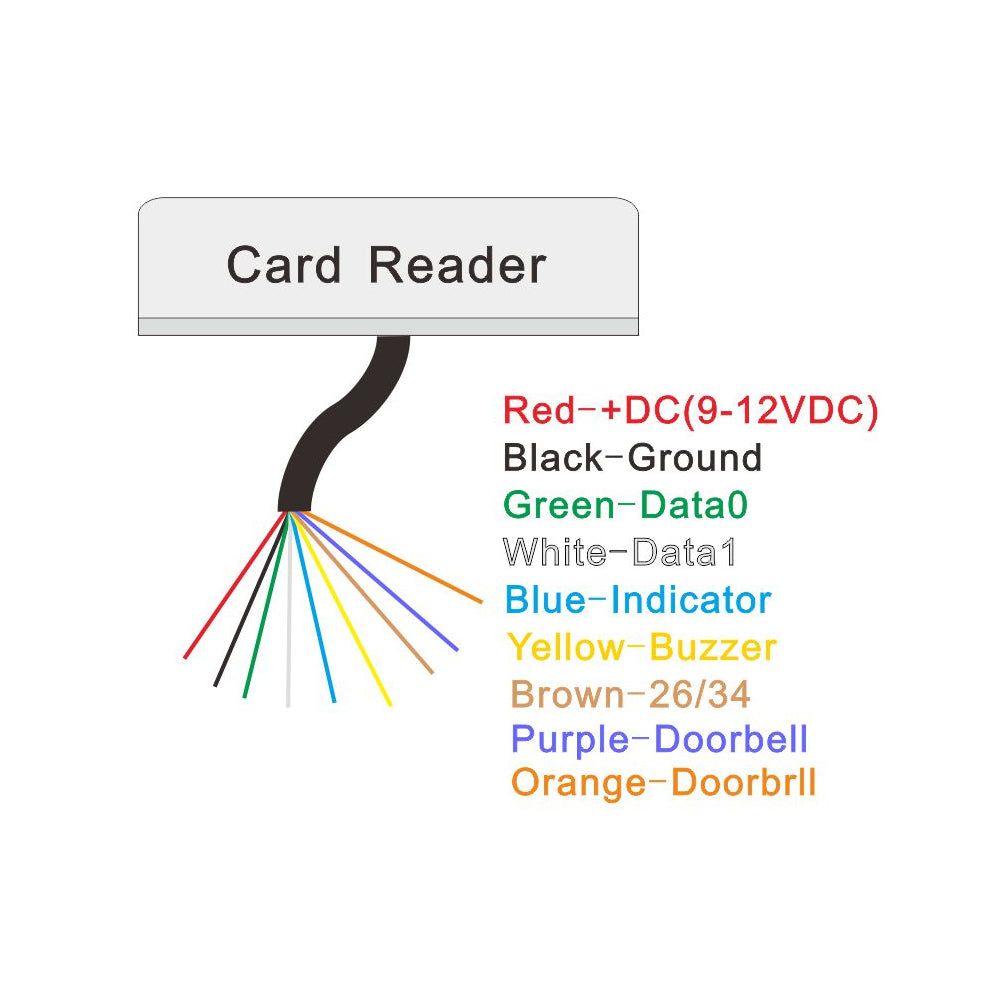

Wiring instructions:
FC-185K Identification card reader: Provide WIEGAND26 or 34 format output, provide LED control and BEEP control circuit.
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
